The world of laser cutting demands extreme accuracy and efficiency. Every single part, from the powerful laser source to the smallest component, plays a vital role in achieving top-notch results. Among these, the nozzle stands out as a true game-changer, especially for how it affects cut quality, machine lifespan, and running costs. This article will take you on a deep dive into laser machine nozzles, explaining what they do, the different types available, why their quality is paramount, how to know when it's time for a change, and why choosing high-quality nozzles, particularly from LaserCart, is a brilliant investment for your business.

What Exactly is a Laser Nozzle?

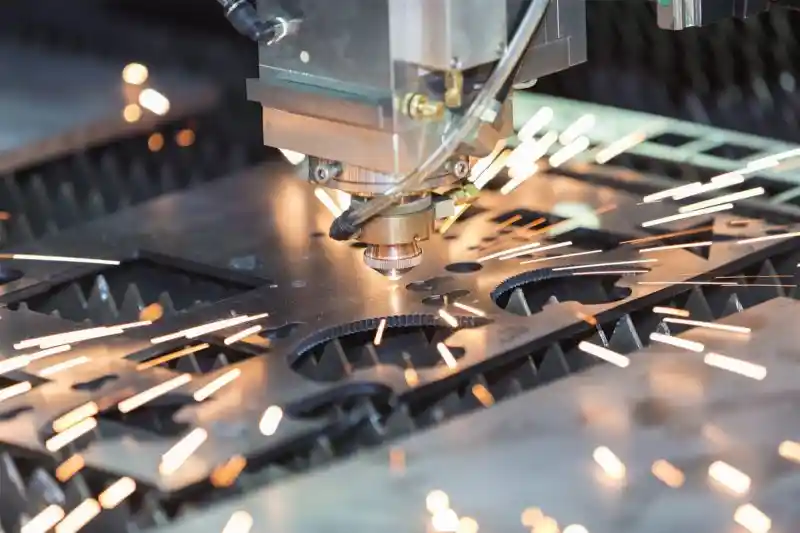

Picture your laser cutting machine as a highly skilled artist. The laser beam is like its paintbrush, and the nozzle is the precise tip that guides every stroke, making sure the cut is clean and accurate. In simpler terms, a laser nozzle is a replaceable part found at the very end of the laser cutting head. Its main job is to direct a special assist gas (such as oxygen, nitrogen, or compressed air) in a perfectly straight line with the laser beam onto the material being cut. This assist gas does several critical jobs:

• Clearing Melted Material: As the laser melts or vaporizes the material, the assist gas powerfully blasts away the molten slag and debris from the cut line (known as the kerf). This stops it from solidifying and blocking the path of the laser.
• Cooling the Workpiece: The gas also helps to cool down the area being cut. This prevents too much heat from building up, which could deform the material or create an undesirable heat-affected zone around the cut.
• Protecting the Focusing Lens: The assist gas creates a protective barrier, preventing hot spatter and fumes from reaching and damaging the delicate focusing lens located inside the cutting head. Replacing this lens can be very costly.
• Controlling Cut Quality: The specific shape and size of the nozzle's opening directly influence how the gas flows. This, in turn, impacts the width of the cut, the smoothness of the edges, and whether you get any unwanted dross (re-solidified material).

Without a nozzle that's working correctly, the laser cutting process would be messy, inefficient, and produce cuts that just aren't good enough.

A Look at Different Nozzle Types

While our discussion highlights ceramic nozzles, it's helpful to understand the range of materials used for these crucial components. Historically, copper and chrome-plated copper nozzles were common because they conduct heat very well. However, as laser technology advanced with higher power outputs and a demand for even greater precision and durability, ceramic nozzles have become the preferred choice.

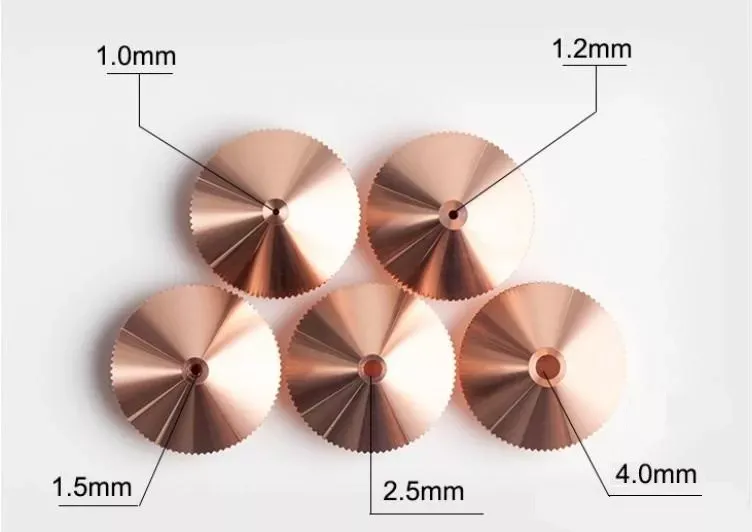

1. Copper Nozzles:

• Pros: Good at conducting heat, relatively inexpensive to buy initially.
• Cons: A softer material, making them prone to wear and tear. They have a shorter lifespan and tend to accumulate spatter, requiring frequent cleaning or replacement.

2. Chrome-Plated Copper Nozzles:

• Pros: The chrome plating offers improved wear resistance compared to plain copper.
• Cons: Still built on a softer base material, the chrome plating can eventually wear off, leading to similar issues as standard copper nozzles.

3. Ceramic Nozzles:

• Pros:
  • Exceptional Hardness and Wear Resistance: Ceramic is incredibly tough, making these nozzles highly resistant to the abrasive forces of the high-velocity assist gas and molten material. This significantly extends their operational life.
  • High Temperature Resistance: Ceramic can withstand the extreme temperatures generated during laser cutting without deforming or degrading, maintaining its structural integrity.
  • Excellent Electrical Insulation: This property is crucial for the capacitive height sensing systems commonly used in laser cutting heads. Ceramic's insulating nature ensures accurate and stable measurement of the stand-off distance from the workpiece.
  • Reduced Spatter Adhesion: The smooth, non-porous surface of ceramic makes it far less likely for molten spatter to stick, resulting in cleaner cuts and less time spent on cleaning.
  • Improved Cut Quality: The durability and precision of a ceramic orifice ensure a consistent and stable gas flow, leading to cleaner edges, minimal dross, and more precise cuts overall.
• Cons: Generally, come with a higher initial cost compared to copper nozzles. However, this is usually offset by their extended lifespan, superior performance, and the benefits they bring to the entire cutting process.

Given their outstanding performance benefits, ceramic nozzles are now the standard choice for most modern high-power fibre and CO2 laser cutting machines.

Where are Laser Nozzles Used?

Laser nozzles are essential components in virtually every industry that relies on laser cutting technology. Their use spans a vast array of applications across numerous sectors:

• Automotive Industry: Used for precision cutting of components for car bodies, exhaust systems, and various interior parts.
• Aerospace Industry: Critical for intricate and precise cutting of lightweight alloys and composite materials used in aircraft structures.
• Fabrication and Manufacturing: Widely employed in general sheet metal cutting for a diverse range of products, from machinery parts to architectural elements and decorative items.
• Medical Device Manufacturing: Essential for producing the intricate and highly precise components required for surgical instruments, implants, and other sensitive medical devices.
• Electronics Industry: Used for cutting thin metal sheets, circuit board materials, and other components for electronic enclosures and devices.
• Signage and Advertising: Enables the creation of custom signs, letters, intricate logos, and artistic designs from various materials.
• Art and Design: Allows artists and designers to create complex and precise metal artwork with unparalleled detail.

Essentially, wherever a laser is used to cut metal or other materials with high precision and speed, you will find a laser nozzle performing its critical function at the heart of the operation.

The Undeniable Importance of Nozzle Quality

It might seem like a small, perhaps even insignificant, component, but the quality of your laser nozzle has a profound and far-reaching impact on your entire laser cutting operation. Here's precisely why investing in high-quality ceramic nozzles is absolutely crucial:

• Optimal Cut Quality: A precisely manufactured nozzle, featuring a perfectly concentric and smooth orifice, guarantees a laminar and stable assist gas flow. This translates directly into:
  • Achieve incredibly smooth and clean cuts, free from messy, re-hardened material on the edges. That’s because the melted waste is powerfully and completely cleared away during the cutting process.
  • Smooth Edge Finish: A consistent and controlled gas flow prevents unevenness and roughness, resulting in remarkably smooth and aesthetically pleasing cut edges.
  • Accurate Kerf Width: The exact size of the nozzle's orifice precisely dictates the width of the cut, which is absolutely critical for intricate designs and adhering to tight manufacturing tolerances.
  • Reduced Rework: High-quality cuts produced consistently minimize the need for time-consuming and costly secondary finishing operations, saving both time and labour.
• Extended Consumable Life (Beyond Just the Nozzle):
  • Focusing Lens Protection: A well-functioning nozzle effectively deflects spatter and airborne debris, significantly extending the operational lifespan of your very expensive focusing lens. Just one faulty lens can easily set you back thousands in unexpected repair bills.
  • The Nozzle Itself: As previously discussed, high-quality ceramic nozzles inherently last much longer than their metallic counterparts, drastically reducing the frequency of replacements.
• Increased Productivity and Machine Uptime:
  • Fewer Replacements: The extended life of high-quality nozzles means less frequent need for replacements, which translates directly into reduced machine downtime. More uptime means more production.
  • Reduced Cleaning: The inherent resistance of ceramic to spatter adhesion means less time has to be spent cleaning the nozzle and the entire cutting head assembly.
  • Consistent Performance: Reliable and predictable nozzle performance means fewer rejected parts, leading to consistent production output and higher material yield.
• Lower Overall Operating Costs: While high-quality ceramic nozzles might have a higher initial purchase price, their extended lifespan, superior protection of other expensive consumables, and significant contribution to higher overall productivity ultimately result in substantial long-term cost savings.
• Enhanced Safety: A properly functioning nozzle ensures the efficient and rapid evacuation of fumes and cutting debris from the workpiece area, contributing directly to a safer working environment for operators.

In essence, the nozzle serves as the critical gatekeeper for both your laser beam and the assist gas. A compromised or subpar gatekeeper will invariably lead to compromised results, negatively impacting every aspect from your material yield to your machine's overall efficiency and your bottom line.

How to Gauge the Life of Your Nozzle and When to Replace It

Even the best ceramic nozzle will eventually wear out. Knowing exactly when to swap it out is super important to keep your cuts looking perfect and to avoid damaging other expensive parts of your machine. Here’s how you can tell it's time for a new one:

1. Just Look at It Closely:

• The Tiny Hole: This is the most crucial spot. Shine a light and look for any signs of wear, like the hole getting bigger, losing its perfect round shape, or having tiny nicks around the edges. Even a small imperfection can mess up how the gas flows.
• Stuck Bits (Spatter): While ceramic nozzles are pretty good at resisting melted metal bits (spatter) from sticking, if you see a lot of gunk building up around the tip, it could mean something's off with your gas pressure, the nozzle isn't lined up right, or it's simply worn out.
• Cracks or Chips: Give the nozzle's body a quick check for any cracks or tiny chips, especially near the cutting tip. These can weaken the nozzle and stop the gas from flowing smoothly.

2. Watch How Your Cuts Look:

• More "Gunk" (Dross): If you start seeing more rough, solidified material (we call it dross) on the edges of your cuts than usual, it's a big hint that your nozzle is worn or damaged. It looks like the assist gas isn’t pushing out the molten metal as it should.
• Rough Edges: Instead of nice, smooth cut edges, if they're looking jagged or uneven, it often means the gas flow isn't consistent, which points to a nozzle issue.
• Wobbly Cut Width: If the line your laser cuts isn't the same width all the way through the material, it could be that the nozzle's hole is worn unevenly.
• Burning or Extra Heat Marks: If the material looks like it's burning more than it should, or there's too much discoloration around the cut, bad gas flow from the nozzle could be causing too much heat.
• Trouble Piercing: If the laser is struggling to make a clean initial hole through the material, the nozzle might not be doing its job of clearing the melted material during that first punch.

3. Pay Attention to Your Machine:

• Alarms and Warnings: Some advanced laser machines have smart sensors that can pick up on problems with gas flow or how far away the cutting head is from the material. These warnings can often lead you back to a nozzle issue.
• Follow a Schedule: Even if nothing seems obviously wrong, it's a smart idea to replace nozzles after a certain number of hours of use or amount of material cut. Your machine's manual often has guidelines for how long nozzles should last. This stops unexpected problems and keeps production flowing.

When to Get a New One:

• As soon as you see any damage to the hole. Even tiny damage matters.
• When your cut quality clearly gets worse, and you've already checked that your laser power, focus, and gas settings are all correct.
• Regularly, based on a planned schedule. For busy factories, it's better to swap out a nozzle a bit early than to have your whole production stop unexpectedly.
• After any kind of collision or if the cutting head crashes. Even if it looks okay, it might have hidden damage.

Remember, trying to squeeze a little extra life out of a worn nozzle can actually cost you a lot more in wasted material, extra work to fix bad cuts, and even damage to other really expensive parts of your laser machine. Keeping an eye on your nozzles and changing them on time is key to smooth, profitable operations!

Meet LaserCart: Your Partner for Great Laser Cutting

In the demanding world of laser cutting, having a reliable supplier for your high-quality consumables is just as important as owning a state-of-the-art machine. This is precisely where LaserCart steps in, providing a comprehensive range of laser cutting consumables, with a particular emphasis on premium ceramic nozzles meticulously designed to optimize your machine's performance.

Lasercart.co stands as India's premier source for top-notch spare parts in Laser Systems, with a reputation built on unwavering trust and quality. They have served over 700 satisfied clients globally, emphasizing excellence and enduring relationships. As a trusted spares marketplace, Lasercart.co upholds authenticity and high standards in every product, offering genuine, superior-quality spare parts to propel the future of laser innovation. Their user-friendly website, competitive pricing, and responsive customer service further solidify their position as a reliable partner in maintaining your laser cutting efficiency.

Discover Laser cart’s Nozzle Selection & Other Essential Parts

Lasercart.co provides diverse nozzle types to perfectly match your cutting needs. Explore their full range of nozzles and other laser machine consumables.

Nozzle Types Available:

• Single Nozzles: Offered in a wide array of sizes (e.g., 1.0mm to 6.0mm), these are ideal for standard cutting applications across various laser power levels (e.g., 4kW to 8kW). They provide precise gas flow for clean, efficient cuts.
• Double Nozzles: Designed for more advanced and high-power laser machines (e.g., 6kW to 12kW), these nozzles feature dual gas flow channels. An inner channel delivers the cutting gas, while an outer channel provides a shielding or cooling layer. This design significantly enhances cut quality, reduces oxidation, and improves performance on reflective or thick materials.
• Specialized Nozzles for Leading Brands: LaserCart also stocks high-speed single and double nozzles, and offers compatibility with popular laser cutting heads from brands like:
  • Raytool: Including models such as BM111, BM114, BM115, and BS08K.
  • Precitec: Specifically, for Lightcutter and Procutter series.
  • OSPRI: Compatible with models like LC208, LC209, LC80, and LC80 Plus, as well as GM08.

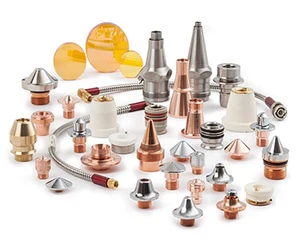

Other Essential Laser System Consumables & Spare Parts:
