In the world of metal fabrication, precision is everything. Even the most powerful fiber laser machine will underperform if the nozzle attached to the cutting head is not suitable for the job. Among the most trusted nozzle types globally, Raytools laser nozzles stand out for their accuracy, durability, and compatibility with modern laser cutting machines.
Yet, many workshops unknowingly compromise their cut quality, speed, and gas consumption simply by choosing the wrong nozzle type or size.
In this article, we’ll break down why selecting the right Raytools laser nozzle is crucial, how it impacts your cutting performance, and what factors you should consider before buying one. Whether you’re cutting mild steel, stainless steel, aluminum, or copper — the right nozzle can dramatically improve your results.
What Does a Laser Cutting Nozzle Actually Do?
Before we dive deeper, it’s important to understand the role of the nozzle in the laser cutting process. The nozzle:
- Directs the assist gas (oxygen, nitrogen, air) toward the material
- Maintains a specific distance between the lens and material
- Controls the diameter of the laser beam
- Stabilizes the cutting process
- Prevents molten metal from splattering back onto the lens
Because of these functions, the nozzle directly affects:
- Cut smoothness
- Kerf width
- Cutting speed
- Piercing quality
- Heat distribution
- Lens safety and lifespan
This is why choosing the wrong nozzle can lead to burned edges, poor penetration, dross, lens damage, or inconsistent cuts.
Why Raytools Laser Nozzles Are Preferred Globally
Raytools cutting heads are widely used in the metal fabrication industry due to their stability, reliability, and compatibility with fiber laser machines from 1kW to 30kW+.
Raytools laser nozzles are engineered to:
✔ Maintain a consistent airflow
✔ Handle high-power lasers
✔ Improve focus control
✔ Enhance cut quality across materials
✔ Reduce gas turbulence
Their nozzles are manufactured with micro-precision, ensuring that even minor variations in gas flow or nozzle height are minimized.
How the “Right Nozzle” Impacts Laser Cutting Performance
1. Better Cut Quality and Smooth Edges
Each nozzle size affects the width of the gas jet and the laser beam.
For example:
- Small nozzles (1.0 mm – 1.2 mm):
Ideal for thin sheets and high-precision cuts - Larger nozzles (1.5 mm – 2.0 mm+):
Better for thick plates requiring higher gas flow
If you choose the wrong size, you may experience:
- Dross on the bottom edge
- Rough cuts
- Unclean kerf
- Burn marks or excessive heat**
Raytools nozzles are crafted to maintain uniform airflow, reducing turbulence and ensuring clean, accurate cuts.
2. Faster Cutting Speed and Less Downtime
When the nozzle size and gas flow are perfectly aligned with the material thickness, the machine performs at maximum speeds without compromising quality.
Wrong nozzle =
❌ Slower cutting
❌ More rework
❌ More time spent cleaning or recutting
Right nozzle =
✔ Higher productivity
✔ Smoother feed rate
✔ Less heat accumulation
For fabrication units working on high-volume jobs, this optimization can save hours per shift.
3. Controlled Gas Consumption (Lower Costs)
Assist gas is one of the most expensive consumables in laser cutting.
A mismatched nozzle can waste significant amounts of nitrogen or oxygen.
For example:
- Using a bigger nozzle than required increases gas usage without improving quality.
- Using a small nozzle on thick material restricts gas flow, leading to overheating.
Raytools nozzles are designed for efficient gas delivery, ensuring you use only as much gas as required — nothing extra.
4. Protects the Laser Head and Lens
Back-spatter (molten metal splashing upward) is a common cause of lens contamination and cutting head damage.
A correct nozzle helps:
- Direct molten metal downward
- Maintain stable airflow
- Reduce back-reflection
- Extend lens life
- Lower replacement costs
Raytools nozzles maintain an ideal protective zone around the beam path, dramatically lowering the risk of damage.

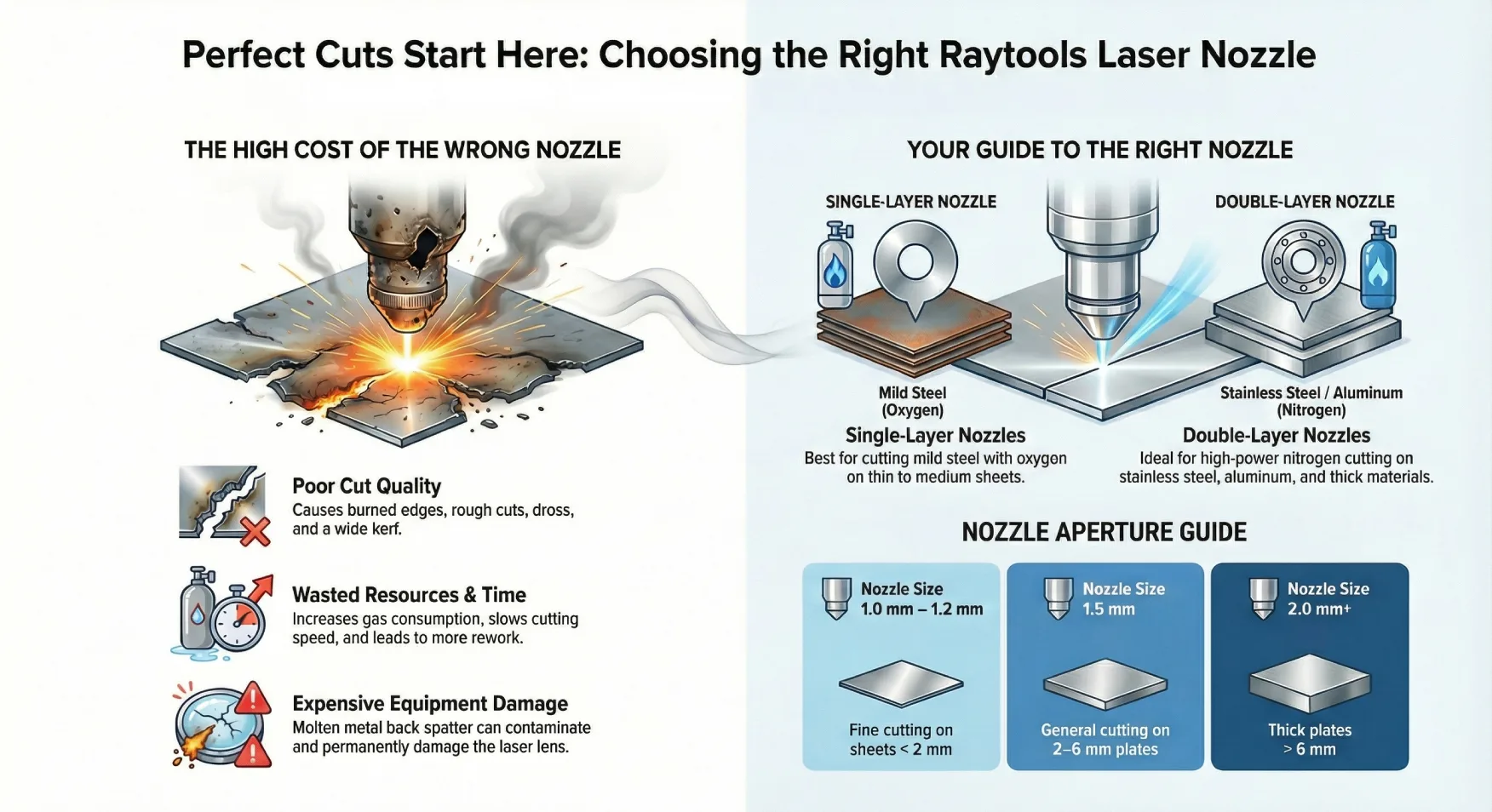

Types of Raytools Nozzles and When to Use Them
🔵 Single-Layer Nozzles
Best for:
✔ Mild steel cutting with oxygen
✔ Thin and medium thickness sheets
✔ Low-to-moderate power lasers
Benefits:
- Lower cost
- Efficient oxygen delivery
- Ideal for general fabrication
Single Nozzles Raytool BM111/BM114
Get durable and efficient Single Nozzles for Raytool BM111/BM114 laser cutting machines. Enhance precision and performance. Ideal for various cutting applications.
🟠 Double-Layer Nozzles
Best for:
✔ Stainless steel
✔ Aluminum
✔ High-power nitrogen cutting
✔ Thicker materials
Benefits:
- Stable gas flow
- Better heat control
- Cleaner cuts on reflective metals
- Reduces burr formation
Choosing the Right Nozzle Size
| Nozzle Size | Best For | Material Thickness |
|---|---|---|
| 1.0 mm–1.2 mm | Fine cutting | < 2 mm |
| 1.5 mm | General cutting | 2–6 mm |
| 2.0 mm–2.5 mm | Thick plates | 6–20 mm |
| 3.0 mm+ | Very thick cuts | 20 mm+ |
Selecting the right size ensures the gas flow, beam quality, and kerf width perfectly align with your job requirements.
Double Nozzle Raytool BM111/BM114
Discover the Double Nozzle Raytool BM111/BM114 for fiber laser cutting heads. Made from pure copper, it ensures precise cutting with durability and high performance.
Signs You Are Using the Wrong Nozzle
If you notice any of these issues, the nozzle is likely incorrect:
- Excessive dross
- Wide kerf
- Burn marks
- Difficulty piercing
- Slow cutting speed
- Nozzle heating up
- Nozzle getting clogged often
- Irregular gas pressure behavior
Upgrading or switching to a more suitable Raytools nozzle can immediately fix most of these problems.
Where to Buy High-Quality Raytools Laser Cutting Nozzles
If you’re looking for original, high-precision Raytools-compatible nozzles, Lasercart offers a complete range with reliable shipping and guaranteed accuracy.
👉 Explore the Raytools Nozzles Collection here:
Lasercart provides:
- Single-layer & double-layer nozzles
- Various nozzle sizes (1.0 mm to 3.0 mm+)
- High-precision copper construction
- Affordable pricing for workshops and factories
- Fast delivery across India
Whether you operate a small fabrication shop or a large industrial unit, choosing the right nozzle from Lasercart ensures better cutting quality and longer machine life.
Conclusion
Choosing the right Raytools laser nozzle is not a minor decision — it fundamentally determines how efficiently your laser cutter performs. From gas flow and cut quality to speed and cost savings, the correct nozzle can transform your operational results.
By understanding your material, thickness, and required finish, you can select the perfect nozzle that delivers clean, consistent, professional-grade cuts every time.
And when you’re ready to stock up on high-quality Raytools nozzles, Lasercart has everything you need under one roof.
