When it comes to achieving precision, speed, and consistency in fiber laser cutting, the choice of Raytools nozzles plays a major role. Whether you are cutting mild steel, stainless steel, aluminium, or high-reflective metals, the nozzle you select can directly influence the quality of the cut, gas usage, and even the longevity of your laser cutting head.

Among the most commonly used laser cutting machine nozzles, Raytools offers two main types: single-layer nozzles and double-layer nozzles. Both have their own functional advantages, gas-flow characteristics, and material-specific applications. Choosing the right one ensures optimal performance for your job.

In this blog, we will explore the key differences, applications, benefits, and limitations of single-layer and double-layer Raytool cutting nozzles, helping you make an informed decision for your laser cutting operations.

Understanding Raytools Nozzles for Laser Cutting Machines

Raytools cutting heads are widely used in fiber laser cutting systems across industries. Their nozzles are engineered to deliver:

• Precise gas flow
• Stable beam focusing
• Consistent cutting performance
• Reduced spatter
• Clean cut edges

The type of nozzle determines how the assist gas behaves during the cutting process—whether it is oxygen, nitrogen, or air. This is why selecting between single-layer and double-layer laser cutting machine nozzles is critical for different types of materials.

What Are Single-Layer Raytool Nozzles?

Single-layer Raytools nozzles have a simple, single-sheet construction. They allow gas to flow straight through the nozzle with minimal restriction. This simplicity makes them ideal for certain cutting applications.

Key Features of Single-Layer Raytool Cutting Nozzles

• Direct gas flow
• Higher gas pressure output
• Less thermal resistance
• Lower cost compared to double-layer nozzles

Best Applications for Single-Layer Laser Cutting Machine Nozzles

Single-layer nozzles are widely used for cutting mild steel (MS) using oxygen assist gas. Their direct airflow supports oxidation cutting, which is the standard method for MS cutting.

Ideal for:

• Mild steel sheet cutting
• Carbon steel plates
• Structural steel components
• Thin to moderate-thickness materials

Advantages of Single-Layer Raytools Nozzles

1. Better for Oxygen Cutting
   Single-layer nozzles support oxidation cutting by maintaining a smooth and consistent gas stream.
2. High Speed on Thin Materials
   For thinner MS sheets, single-layer nozzles deliver faster cutting speeds.
3. Lower Cost
   They are economical and ideal for workshops handling high-volume cutting.
4. Reduced Risk of Nozzle Clogging
   The simple structure decreases the chance of clogging during extended use.

Limitations of Single-Layer Nozzles

• Not suitable for nitrogen cutting on SS or aluminium
• Less effective for high-pressure applications
• Can cause high spatter on reflective materials

What Are Double-Layer Raytool Nozzles?

Double-layer Raytools nozzles feature two layers of metal, creating a complex airflow system. Their design allows for better pressure regulation and controlled gas flow, especially at high pressures.

Key Features of Double-Layer Raytool Cutting Nozzles

• Two-layer construction for regulated gas flow
• Improved gas pressure stability
• Ideal for high-precision cutting
• Better thermal resistance

Best Applications for Double-Layer Laser Cutting Machine Nozzles

Double-layer nozzles are perfect for nitrogen or air cutting of:

• Stainless steel (SS)
• Aluminium
• Copper
• Brass
• Titanium
• Galvanized steel

Their improved gas flow minimizes oxidation, ensuring clean and shiny cut edges.

Advantages of Double-Layer Raytools Nozzles

1. Better for High-Pressure Nitrogen Cutting
   Double-layer nozzles maintain consistent pressure, which is crucial for clean, burr-free cutting.
2. Cleaner and Brighter Edges
   Ideal for stainless steel fabrication where aesthetics matter.
3. Reduced Heat Impact
   Helps in maintaining material strength, especially on thin SS sheets.
4. Lower Spatter and Dross Formation
   Delivers higher cutting precision for complex geometries.

Limitations of Double-Layer Nozzles

• More expensive than single-layer nozzles
• Not suitable for oxygen cutting applications
• Require more careful handling and cleaning

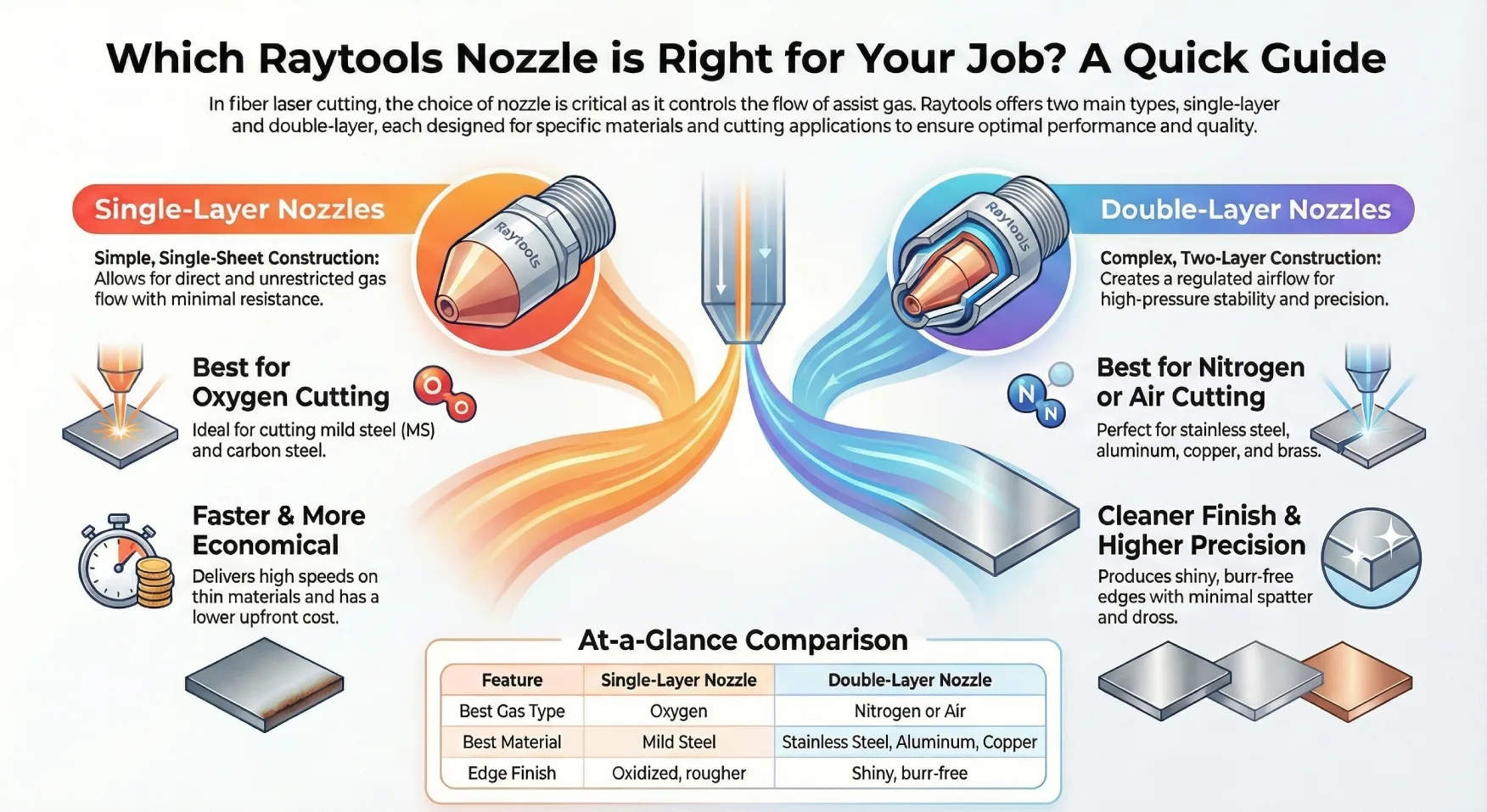

Single-Layer vs Double-Layer Raytools Nozzles: A Side-by-Side Comparison

How to Choose the Right Raytools Cutting Nozzle for Your Job?

Selecting the correct nozzle depends on several factors:

✔ 1. Material Type

• Mild Steel → Single-layer nozzle with oxygen
• Stainless Steel → Double-layer nozzle with nitrogen
• Aluminium, Brass, Copper → Double-layer nozzle

✔ 2. Finish Quality Required

• General fabrication → Single-layer is sufficient
• High aesthetic finish → Double-layer nozzle

✔ 3. Thickness of the Material

• Thin to medium MS sheets → Single-layer
• Thin to medium SS/Aluminium sheets → Double-layer

✔ 4. Cutting Speed Requirements

• High-speed MS cutting → Single-layer
• Precision-based cutting → Double-layer

✔ 5. Budget Consideration

• Single-layer is cost-effective for MS cutting
• Double-layer offers higher quality, especially for SS and aluminium fabrication industries

Why Raytools Nozzles Are Important for Efficient Laser Cutting

Using the right laser cutting machine nozzle impacts:

• Cutting quality
• Machine productivity
• Assist gas consumption
• Nozzle lifespan
• Operating cost

Raytools nozzles are engineered for superior performance and compatibility with leading fiber laser cutting heads, making them a trusted choice for metal fabrication units globally.

Conclusion: Which Raytool Nozzle Should You Use?

Choosing between single-layer and double-layer Raytools cutting nozzles depends on your material type, quality expectations, and production goals:

• Choose Single-Layer Raytools Nozzles if you cut mild steel using oxygen, want fast cutting speeds, and need a cost-effective option.
• Choose Double-Layer Raytools Nozzles if you cut stainless steel or aluminium with nitrogen, need burr-free edges, and want high-precision cutting.

Using the right nozzle ensures that your laser cutting machine performs at its peak efficiency, delivers consistent results, and keeps your operating costs under control.
